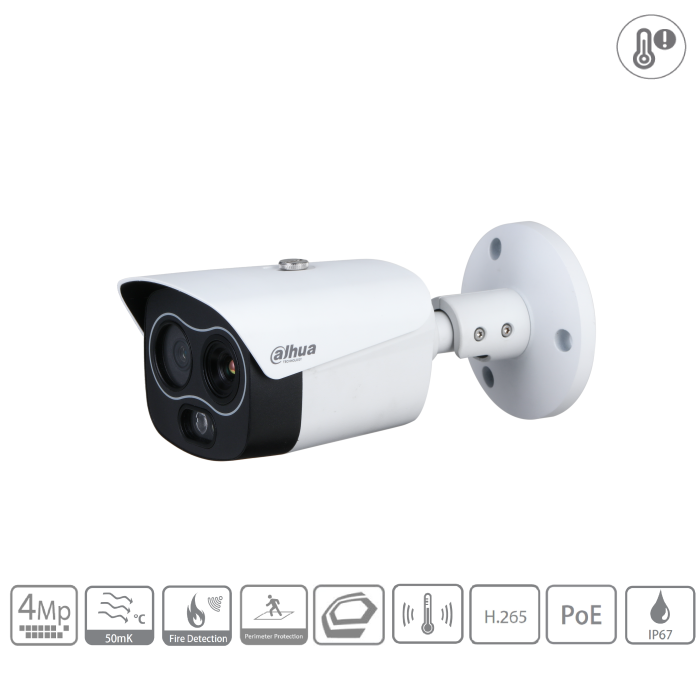

Dahua - TPC-BF1241-TB3F4-DW-S2-HW - Thermal - Bullet Kamera
Verfügbarkeit : Auf Lager
SKU :
CSP-12844
- 4MP/4mm fix lens
- Thermal: 256*192/3,5mm fix lens/ Spectral Range 8 ~ 14 um
- H.265/H.264/MJPEG Codec
- Audio In/Out, Alarm In/Out
- Max. IR ~ 30m
- Micro SD Slot, IVS, Fire detection, temp. measurement
- IP67, DC12V, PoE
Über 30 Jahre ErfahrungÜber
Professionelle Beratung durch unsere Experten
Professioneller Aufbau
3 jahre Garantie und Lebenslang Service
Service Qualitat Nr. 1
- Two Sensors:
Visible: Thermal:
- 4 Megapixel / 4 mm fix lens - Thermal: 256*192 / 3,5 mm fix lens / Spectral Range 8 – 14μm
- 25 fps @ 4MP (2336x1752) - 25 fps @ 1.3MP (1280x960 in 4:3)
- Support H.265 / H.264M / H.264H / H.264N / MJPEG Codec
- DWDR, Day/Night(ICR), 2D NR, 3D NR , BLC, HLC
- Max. IR Range ~ 30m
- Micro SD Slot for 256 GB
- 1/1 Alarm In/Out and 1/1 Audio In/Out
- Audio Detection (Noise)
- Fire Detection & Alarm
- Support temperature measurement
- Support temperature range is between -20 °C to 550 °C (-4°F to 1022 °F)
- Intelligent Video System (IVS), just one Rule useable:
Visible Lens:
- Perimeter Protection with Object Filter for Human and Car for Intrusion, tripwire
- Call Detection
Thermal Lens:
- Perimeter Protection with Object Filter for Human and Car for Intrusion, tripwire
- Smoking Detection
- 1x white Light LED & Siren
- Sirene and Light Active Deterrence
- Support 18 color modes selectable such as Whitehot/Blackhot/Ironrow/Icefire.
- Image-Rotation-Mode, 0° / 90° / 180° / 270° // Image-Mirror
- Privacy Masking with 4 Area
- Power supply with DC 12V, PoE
- IP67
- IP67
DORI Human Vehicle
Detection 146m 449m
Recognition 38m 110m
Identification 19m 56m
Perimeter protection Range
People: up to 24,5m
Vehicles: up to 72,5m
People: up to 24,5m
Vehicles: up to 72,5m
Heat Detecton Distance
22m
Temperatur Measurment Range (Object 0,1m x 0,1m)
Min. 1m
Max. 5m
Controlex recommends using this camera with the special focal angle to cover a large (wide) area visually and with thermal.
Schreiben Sie eine Bewertung
- Camera technology
- IP
- Camera type
- Eyeball
- Image Sensor
- 1/2,7" CMOS
- Max Aperture
- F1.6
- Minimum Illumination (Color)
- 0.05 Lux
- Minimum Illumination (IR on)
- 0 Lux
- Minimum Illumination (B/W)
- 0,005 Lux
- IR LED Lighting Distance
- 030m
- Lens Type
- Fixed lens
- Focal Length
- 4 mm
- Angle of View (H)
- 71,2°
- Angle of View (V)
- 52°
- WDR
- DWDR
- Loudspeaker
- Yes
- Siren
- Yes
- Ethernet
- RJ-45(10 Base-T/100Base-TX)
- Power Supply
- DC 12V, PoE
- Power Consumption
- Max 14W
- Operating Conditions
- -30°C ~ +60°C / Less than 95% RH
- Micro SD
- 256GB
- Ingress Protection
- IP67
- Resolution
- 4MP@25fps / CIF@25fps
- Perimeter Protection
- Yes
- Special Feature
- IVS: Tripwire, Intrusion, Abandoned/Missing Object / Fire detection / temperature measurement
- Spectral Range
- 8 ~ 14μm
- Th. Resolution
- 1.3MP@25fps / 640x480@25fps
- Th. Angle of View (H)
- 50,6°
- Th. Image Sensor
- Vanadium Oxide Uncooled Focal Plane Detector
- Th. Effective Pixels
- 256(H) x 192(V)
- Thermal Lens
- 3,5 mm
