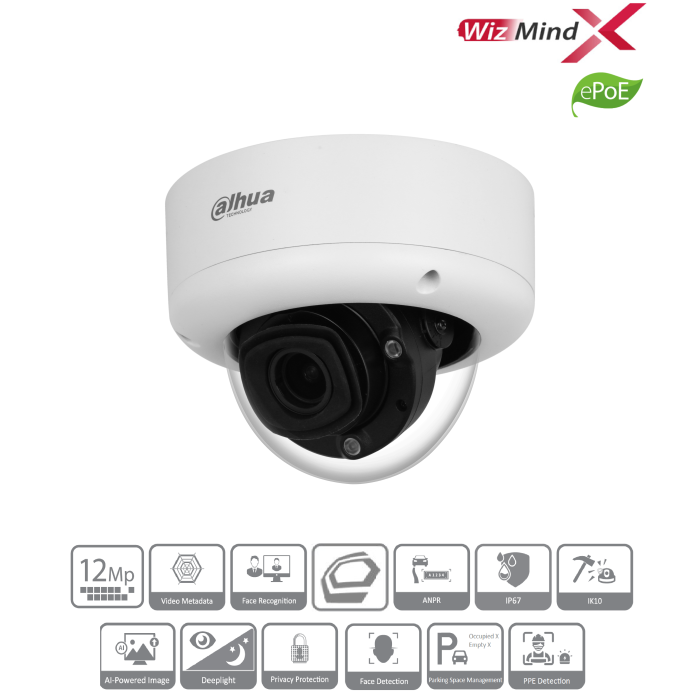

Dahua IPC-HDBW71242E1P-Z-X IP Dome Überwachungskamera kaufen – Beste IP Überwachungskamera

- 12 Megapixel / Deeplight / WizMind X
- 1/1.7" CMOS
- 2.7 ~ 12 mm motorised lens
- 4x IR LED, Max. IR range ~60 m

- Light sensitivity colour 0.0009 lux @F1.6 / black white 0.0005 lux @ F1.6
- 25 fps @ 12MP (4000x3000), 25 fps @ 8MP (3840x2160), 25 fps @ 4MP (2688×1520), 25 fps @ 2MP (1920x1080)
- Supports H.265 / H.264+ / H.264 / MJPEG (secondary stream) codec
- DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC, HLC, SSA
- Micro SD card slot up to 512GB
- 3/2 Alarm In (5mA 3V-5V DC) / Out (1000mA 30V DC / 500mA 50V AC)
- 1/1 Audio In/Out (RCA)
- Built In Mic

- Built In Speaker
- 1x BNC output CVBS, test output
- Private masking up to 8x areas as colour block, of which up to 4x areas as mosaic
- Image rotation mode, 0° / 90° / 180° / 270° // Image mirroring
- 1x RS485
- IP67, IK10
- DC 12V output, 165 mA
- DC 12V, AC 24V, PoE+, ePoE



- Audio detection (sounds)
- Motion detection
- Intelligent Video System (IVS), with advanced Deep Learning algorithms, one choice each possible between:
   - Perimeter Protection with Object Filter Human, Vehicle for Tripwire Rule and Area Monitoring.
   - IVS Analysis Rule Type: Parking Detect (6-300 sec.), Accumulation Detect, Wandering Detect, Fast Movement,
     Object added, object removed, tripwire and area monitoring
   - Face detection (face identification) with attributes such as age, gender, facial expression, glasses, mouth mask, beard
   - Face comparison (face identification) by database matching of faces in up to 5 databases with 200,000 images
   - Protective equipment recognition (PPE) Alarm by presence or absence of work clothes, hat, mask,
     apron, gloves, overshoes, boots, seatbelt, safety vest
   - Count people in up to 4x defined trip wire Rules for, number entering, number exiting, number remaining
   - Area Count people in up to 4x defined area, Number Contained, Stay Alarm
   - Queue area for up to 4x alarm by waiting time and or waiting number
   - Area frequency graphic (heat map)
   - ANPR for up to one lane with number plate detection, vehicle type, vehicle colour, up to 60km/h, traffic flow statistics in OSD.
     Supports lock list for 10,000 entries and permit list for up to 10,000 entries, alarm output switching possible.
   - Parking space monitoring Management of up to 16x parking areas for up to 50x parking spaces per area; display of the total number of

     parking spaces and available parking spaces; triggering of alarms by a predefined number of vehicles.
     of parking spaces and available parking spaces; triggering of alarms by a predefined number of vehicles.
   - Video structuring (video metadata), includes
     People capture with metadata/attributes: Image of face, gender, top, colour top, trouser type, trouser colour, bag,
     hat, umbrella
     Vehicle capture with metadata/attributes: Image of vehicle, image of number plate, number plate capture, vehicle type,
     Vehicle colour, Seat belt fastened, Smoking, Phone call
     Two-wheeler Capture with metadata/attributes: Vehicle type, Vehicle colour, Number of passengers, Top, Colour of top, Hat
   - Active pixelation of people, pixelation of face or entire body in live image
