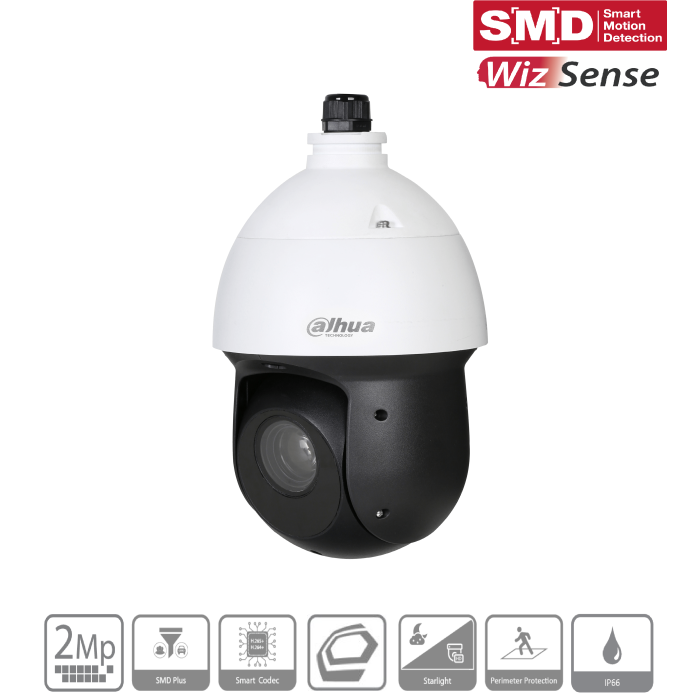

Dahua - SD49225XA-HNR-S3 - IP - PTZ Kamera
Verfügbarkeit : Auf Lager
SKU :
CSP-13037
- 2 MP/Starlight/WizSense/SMD
- 4.8 ~ 120mm/25x optical Zoom
- Max. IR Range ~100m
- H.265+/H.265/H.264+/H.264 Codec
- 25fps@1080P(1920x1080)
- 2/1 Alarm IN/OUT, 1/1 Audio In/OUT
- IVS, SMD Plus
- IP66
- POE+, DC 1
Über 30 Jahre ErfahrungÜber
Professionelle Beratung durch unsere Experten
Professioneller Aufbau
3 jahre Garantie und Lebenslang Service
Service Qualitat Nr. 1
- 2 Megapixel / Starlight / WizSense / SMD
- 1/2.8" CMOS
- 4,8 ~ 120mm / 25x optical zoom
- 4x IR LED, Max. IR range ~100m
- 1/2.8" CMOS
- 4,8 ~ 120mm / 25x optical zoom
- 4x IR LED, Max. IR range ~100m
- Light sensitivity colour 0.005 lux @F1.6 / black white 0.0005 lux @ F1.6
- 25 fps @ 1080P (1920x1080), 25 fps @ 720P (1280x720)
- Supports H.265+ / H.265 / H.264+ / H.264 / MJPEG (secondary stream) codec
- True WDR (120dB), Day/Night Auto (ICR), 3DNR, AWB, AGC, BLC, HLC
- Micro SD card slot up to 512GB
- 2/1 Alarm IN/OUT and 1/1 Audio In/OUT
- Audio detection (Audio IN for sounds)
- Private masking up to 24 areas
- SMD Plus: Enhanced motion detection (triggered only by human or vehicle in the image)
- Intelligent Video System (IVS), one selection possible per preset between:
- Perimeter Protection with object filter Human, Vehicle for tripwire and area monitoring, Object missing
(false alarms due to animals, trees, bright light, etc.)
- Face Capture ( Face image capture with metadata/attributes: Age, glasses, gender, mouth mask,
facial expression, beard)
- Video metadata, includes people capture: image of face/body / vehicle capture: image of vehicle
Two-wheeler capture: image of vehicle // image capture only no attributes
// Report generation for analysis of traffic flow statistics per preset
- Image rotation mode, 180
- Pan/tilt range: pan: 0° ~ 360° endless; tilt: -15° ~ 90°, auto flip 180°
- 25 fps @ 1080P (1920x1080), 25 fps @ 720P (1280x720)
- Supports H.265+ / H.265 / H.264+ / H.264 / MJPEG (secondary stream) codec
- True WDR (120dB), Day/Night Auto (ICR), 3DNR, AWB, AGC, BLC, HLC
- Micro SD card slot up to 512GB
- 2/1 Alarm IN/OUT and 1/1 Audio In/OUT
- Audio detection (Audio IN for sounds)
- Private masking up to 24 areas
- SMD Plus: Enhanced motion detection (triggered only by human or vehicle in the image)
- Intelligent Video System (IVS), one selection possible per preset between:
- Perimeter Protection with object filter Human, Vehicle for tripwire and area monitoring, Object missing
(false alarms due to animals, trees, bright light, etc.)
- Face Capture ( Face image capture with metadata/attributes: Age, glasses, gender, mouth mask,
facial expression, beard)
- Video metadata, includes people capture: image of face/body / vehicle capture: image of vehicle
Two-wheeler capture: image of vehicle // image capture only no attributes
// Report generation for analysis of traffic flow statistics per preset
- Image rotation mode, 180
- Pan/tilt range: pan: 0° ~ 360° endless; tilt: -15° ~ 90°, auto flip 180°
- Preset 300x
- Tour 8x (up to 32x Preset per Tour)
- Pattern 5x
- Scan 5x- Electronic image stabiliser
- IP66
- PoE+, DC 12V/3A
- Included in delivery: Wall mount (PFB305W)
Lens | Identify | Recognize | Observe | Detect |
full Zoom | 240m | 480m | 948m | 2400m |
Schreiben Sie eine Bewertung
- Colour
- White
- Camera technology
- IP
- Camera type
- PTZ
- Max Resolution
- 2MP
- Image Sensor
- 1/2,8" CMOS
- Max Aperture
- F1.6 ~ F3.8
- Minimum Illumination (Color)
- 0.005 Lux
- Minimum Illumination (B/W)
- 0.0005 Lux
- IR LED Lighting Distance
- 100 m
- Lens Type
- Motorized
- Focal Length
- 4.8 - 120 mm
- Angle of View (H)
- 56,2° ~ 2.6°
- Angle of View (V)
- 32,5° - 1,5°
- FPS @ D1
- 25 FPS
- FPS @ 1080p
- 25 FPS
- WDR
- 120dB
- Audio In
- 1 channel
- Audio Out
- 1 channel
- Loudspeaker
- No
- Microphone
- No
- Alarm Input
- 2 channels
- Alarm Output
- 1 channel
- Power Supply
- DC 12V, PoE+ (802.3at)
- Power Consumption
- Max. 21W
- Operating Conditions
- -40°C ~ 65°C / Less than 90% RH
- Micro SD Slot
- 512 GB
- Ingress Protection
- IP66
- Autotracking
- No
- Face Detection
- Yes
- Perimeter Protection
- Yes
- SMD
- Yes
- Special Feature
- Starlight / SMD Plus / IVS: Tripwire, Intrusion, Abandoned/Missing Object, Face Event / PoE / Alarm IN/OUT
- Weight
- 5 kg
