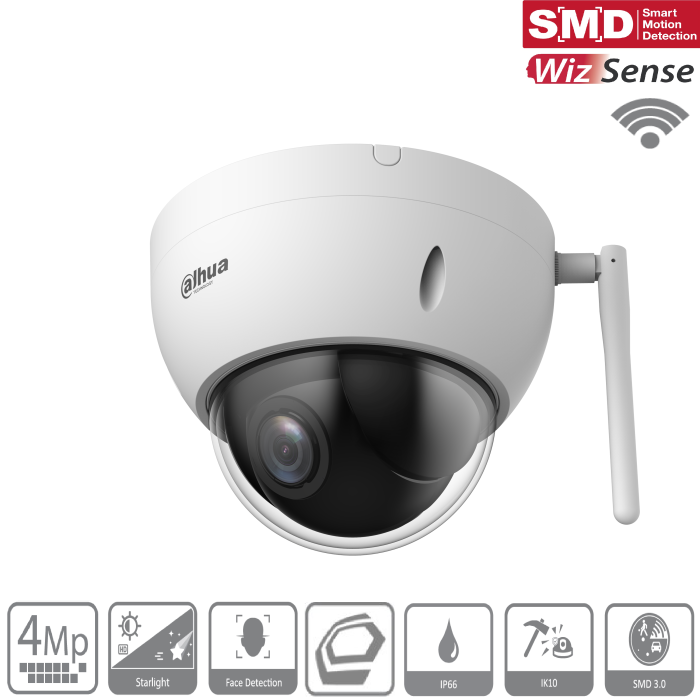

Dahua - SD22404DB-GNY-W - IP - PTZ Kamera
Verfügbarkeit : Auf Lager
SKU :
CSP-13224
- 4MP/WizSense/Starlight
- 2,8 ~ 12 mm motor. Objektiv
- H.265/H.264/MJPEG(Sekundär Stream) Codec
- no IR
- IVS, SMD 3.0
- Micro SD Einschub
- IP66,IK10
- only DC 12V
Über 30 Jahre ErfahrungÜber
Professionelle Beratung durch unsere Experten
Professioneller Aufbau
3 jahre Garantie und Lebenslang Service
Service Qualitat Nr. 1
- 2 Megapixel / WizSense / Starlight / SMD 3.0
- 1/2.8" CMOS
- 2.8 ~ 12 mm motorised lens
- no IR (very light sensitive, can use external IR)
- Light sensitivity colour 0.005 lux @F1.6 / black white 0.0005 lux @ F1.6
- 25 fps @ 4MP (2592x1520), 25 fps @ 2MP (1920x1080), 25 fps @ D1 (704x567)
- Supports H.265 / H.264+ / H.264 / MJPEG (secondary stream) codec
- DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC, HLC
- Micro SD card slot up to 512GB
- SMD 3.0 (Improved motion detection triggered by people / vehicle)
- Intelligent Video System (IVS), one selection possible per preset between:
- IVS Analysis Rule Type: Parking Detect (6-300 sec.), Accumulation Detect, Wandering Detect
- Perimeter Protection with Object Filter Human, Vehicle for Tripwire and Area Monitoring
- Object monitoring with object added, object removed, no filter
- Face Detection ( Face detection with image, without attributes)
- Pan/Tilt Range: Pan: 0° ~ 355° Limited; Tilt: 0° ~ 90°; Auto Flip 180°
- 1/2.8" CMOS
- 2.8 ~ 12 mm motorised lens
- no IR (very light sensitive, can use external IR)
- Light sensitivity colour 0.005 lux @F1.6 / black white 0.0005 lux @ F1.6
- 25 fps @ 4MP (2592x1520), 25 fps @ 2MP (1920x1080), 25 fps @ D1 (704x567)
- Supports H.265 / H.264+ / H.264 / MJPEG (secondary stream) codec
- DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC, HLC
- Micro SD card slot up to 512GB
- SMD 3.0 (Improved motion detection triggered by people / vehicle)
- Intelligent Video System (IVS), one selection possible per preset between:
- IVS Analysis Rule Type: Parking Detect (6-300 sec.), Accumulation Detect, Wandering Detect
- Perimeter Protection with Object Filter Human, Vehicle for Tripwire and Area Monitoring
- Object monitoring with object added, object removed, no filter
- Face Detection ( Face detection with image, without attributes)
- Pan/Tilt Range: Pan: 0° ~ 355° Limited; Tilt: 0° ~ 90°; Auto Flip 180°
- Preset 300x
- Tour 8x (up to 32x Preset per Tour)
- Muster 5x
- Privacy masking 8x areas (blocks of different colours)- Image rotation mode,180° // Image flip
- IP66, IK10
- Power supply only with DC 12V, no PoE!
- Power supply unit not included in delivery !
- Wi-Fi standard 802.11n; IEEE802.11b; 802.11g
- Wi-Fi frequency range 2.4GHz
- Wi-Fi transmission rate 150Mbps
- Wi-Fi standard 802.11n; IEEE802.11b; 802.11g
- Wi-Fi frequency range 2.4GHz
- Wi-Fi transmission rate 150Mbps
Schreiben Sie eine Bewertung
- Colour
- White
- Camera technology
- IP
- Camera type
- PTZ
- Max Resolution
- 4MP
- Image Sensor
- 1/2,8" CMOS
- Max Aperture
- F1.6
- Minimum Illumination (Color)
- 0.005 Lux
- Minimum Illumination (B/W)
- 0.0005 Lux
- IR LED Lighting Distance
- no IR
- Lens Type
- Motorized
- Focal Length
- 2.8 - 12 mm
- Angle of View (H)
- 105,7° ~ 33,6°
- Angle of View (V)
- 48,5° ~ 16,6°
- FPS @ 720p
- 25 FPS
- FPS @ 1080p
- 25 FPS
- FPS @ 4MP
- 25 FPS
- WDR
- DWDR
- Privacy Zone
- 8
- Loudspeaker
- No
- Siren
- No
- Microphone
- No
- Power Supply
- DC 12V/1A
- Power Consumption
- Max. 4.8W
- Operating Conditions
- -30°C ~ 60°C / Less than 95% RH
- Micro SD Slot
- 512 GB
- Ingress Protection
- IP66
- Vandal Resistance
- IK10
- Wi-Fi
- Yes
- Wi-Fi Standard
- 802.11n; IEEE802.11b; 802.11g
- Wi-Fi Frequency Range
- 2,4GHz
- Wi-Fi Transmission Rate
- 150Mbps
- IVS
- Yes
- Acupick
- No
- SMD
- Yes
