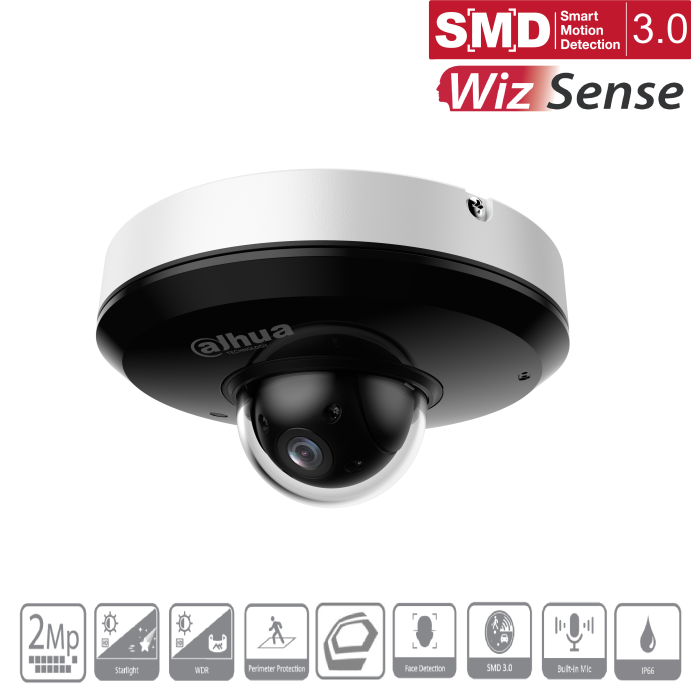

Dahua - SD1A204DB-GNY - IP - PTZ Kamera
Verfügbarkeit : Auf Lager
SKU :
CSP-13285
- 2 MP/Starlight/WizSense
- 2.8 ~ 12mm/4x optical Zoom
- Max. IR Range ~20m
- 1/1 Audio In/OUT
- IVS, SMD 3.0,
- IP66, IK08
- POE, DC 12V/2A
Über 30 Jahre ErfahrungÜber
Professionelle Beratung durch unsere Experten
Professioneller Aufbau
3 jahre Garantie und Lebenslang Service
Service Qualitat Nr. 1
- 2 Megapixel / Starlight / WizSense / SMD 3.0
- 1/2.8" CMOS
- 4,8 ~ 120mm / 25x optical zoom
- 3x IR LED, Max. IR range ~20m
- 1/2.8" CMOS
- 4,8 ~ 120mm / 25x optical zoom
- 3x IR LED, Max. IR range ~20m
- Light sensitivity colour 0.005 lux @F1.8 / black white 0.0005 lux @ F1.8
- 25 fps @ 1080P (1920x1080), 25 fps @ 720P (1280x720)
- Supports H.265+ / H.265 / H.264+ / H.264 / MJPEG (secondary stream) codec
- True WDR (120dB), Day/Night Auto (ICR), 3DNR, AWB, AGC, BLC, HLC
- Micro SD card slot up to 512GB
- 1/1 Audio In/OUT
- 25 fps @ 1080P (1920x1080), 25 fps @ 720P (1280x720)
- Supports H.265+ / H.265 / H.264+ / H.264 / MJPEG (secondary stream) codec
- True WDR (120dB), Day/Night Auto (ICR), 3DNR, AWB, AGC, BLC, HLC
- Micro SD card slot up to 512GB
- 1/1 Audio In/OUT
- bulit in Mic
- Audio detection (Audio IN for sounds)
- Private masking up to 24 areas, max. 8 areas for each preset
- SMD 3.0: Enhanced motion detection (triggered only by human or vehicle in the image)
- Intelligent Video System (IVS), one selection possible per preset between:
- Perimeter Protection with Object Filter Human, Vehicle for Tripwire and Area Monitoring
- IVS Object monitoring with object added, object removed, no filter
- Face Capture ( Face image capture with attributes: Age, glasses, gender, mouth mask,
facial expression, beard)
- Audio detection (Audio IN for sounds)
- Private masking up to 24 areas, max. 8 areas for each preset
- SMD 3.0: Enhanced motion detection (triggered only by human or vehicle in the image)
- Intelligent Video System (IVS), one selection possible per preset between:
- Perimeter Protection with Object Filter Human, Vehicle for Tripwire and Area Monitoring
- IVS Object monitoring with object added, object removed, no filter
- Face Capture ( Face image capture with attributes: Age, glasses, gender, mouth mask,
facial expression, beard)
- People Counting
- Image rotation mode, 180
- Pan/tilt range: pan: 0° ~ 355° limited; tilt: 5° ~ 90°, auto flip 180°
- Image rotation mode, 180
- Pan/tilt range: pan: 0° ~ 355° limited; tilt: 5° ~ 90°, auto flip 180°
- Preset 300x
- Tour 8x (up to 32x Preset per Tour)
- Electronic image stabiliser- Preset 300x
- Tour 8x for 32 Preset
- Idle Motion Preset, Tour
- IP66, IK08
- PoE, DC 12V/2A
- IP66, IK08
- PoE, DC 12V/2A
| Lens | Identify | Recognize | Observe | Detect |
| full Zoom | 16,6m | 33,1m | 65,4m | 165,5m |
Schreiben Sie eine Bewertung
- Colour
- White
- Camera technology
- IP
- Camera type
- PTZ
- Max Resolution
- 2MP
- Image Sensor
- 1/2,8" CMOS
- Max Aperture
- F1.8 - F2.7
- Minimum Illumination (Color)
- 0.005 Lux
- Minimum Illumination (B/W)
- 0,0005 Lux
- IR LED Lighting Distance
- 020 m
- Lens Type
- Motorized
- Focal Length
- 2.8 - 12 mm
- Angle of View (H)
- 101,6° ~ 51,9°
- Angle of View (V)
- 53,1° - 29,1°
- FPS @ D1
- 25FPS
- FPS @ 1080p
- 25FPS
- WDR
- 120dB
- Audio In
- 1 channel
- Audio Out
- 1 channel
- Loudspeaker
- No
- Siren
- No
- Microphone
- Yes
- Power Supply
- DC 12V/2A or PoE(802.3af)
- Power Consumption
- Max. 13W
- Operating Conditions
- -30°C ~ +60°C / Less than 95% RH
- Micro SD Slot
- 512 GB
- Ingress Protection
- IP66, IK08
- Casing
- Metal Base, Plastic Top
- Active deterrence
- No
- Face Detection
- Yes
- Face Recognition
- No
- IVS
- Yes
- Perimeter Protection
- Yes
- People counting
- Yes
- SMD
- Yes
- Special Feature
- Starlight / SMD 3.0 / IVS: Tripwire, Intrusion, Abandoned/Missing Object, Face Event / PoE
