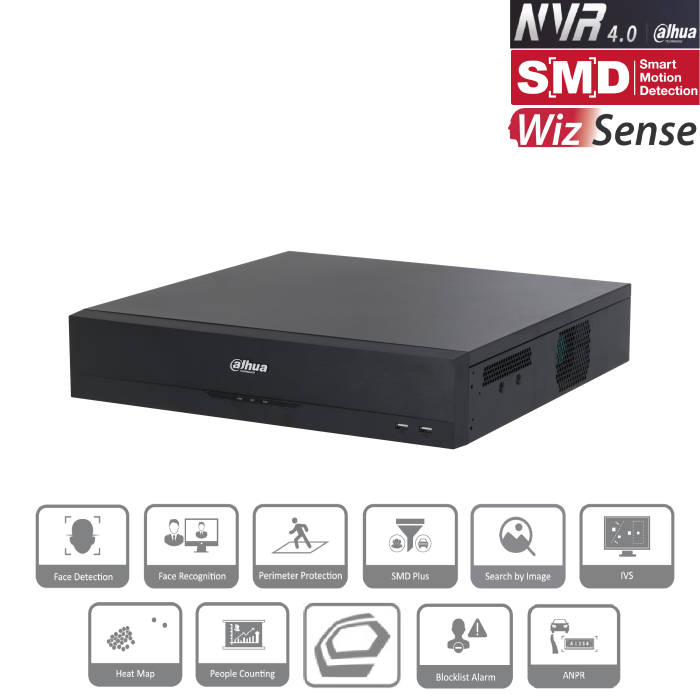

Dahua NVR5864-EI 64Chn NVR

- 64 channel recorder / WizSense
- Supports H.265+/ H.265/ H.264+/ H.264/ MJPEG (secondary stream) codec
- Max. 384 Mbps incoming bandwidth (200 Mbps when AI functions are activated by recorder)
- Live image and playback up to 32 MP
- Decoding capability: 2 channel@32MP 25fps, 4 channel@16MP 25fps, 8 channel@8MP 25fps, 16 channels@4MP 25fps,

64 channels@2MP 25fps
- Direct image output via 2x HDMI and 2x VGA / main window and sub window splitting possible
- 8x SATA port for up to 16 TB

- 1x eSATA Port

- RAID 0/1/5/6/10

- 4x USB (2x USB 2.0 front, 2x USB 3.0 rear)
- 1x audio input / 2x audio output (RCA connector)
- 16x alarm inputs / 8x alarm outputs

- 2x LAN Ports
- RS-232 and RS-485 port
- Does not support Quick Pick

- Supports Acupick up to 16x Acupick cameras
- Supports P2P function
- Supports Point of Sale (POS)
- Supports Fisheye Dewarp for up to 4 channels

latest firmware version required for AI functions (in the support portal):

- Supports AI by camera:
Face detection / face comparison, video metadata( people, vehicles, non vehicles), perimeter protection, SMD Plus, people count, people crowd, heat map, stereo analysis, ANPR, vehicle density.

- AI by recorder:
2x channel face detection / face comparison; or.
4x channels Perimeter Protection; or
8x channel SMD Plus

Intelligent Video System (IVS), with advanced Deep Learning algorithms, rule is implemented by recorder, IVS camera not necessary, selection is limited by function, not all rules are possible at the same time:

Parameter settings (AI by recorder)

- Perimeter Protection with object filter human, vehicle for rule like tripwire and area monitoring / for up to 4 channels by recorder, with 10 IVS rules each // or for up to 16 channels by camera.

AI search via filter human, vehicle

- Face comparison (face identification) with database matching of defined images (up to 20 databases with 20,000 images possible) for up to 2 channel by recorder; checking of 16 face images/sec // or for up to 16 channels by camera

- Face detection (face capture) with metadata/attributes for up to 1 channels by recorder // or for up to 16 channels by camera

AI search face matching (face identification) with up to 16 frames/sec. simultaneously possible, search for similarities in percentage
AI search face detection (face capture) via filters with attributes: Age, gender, facial expression, glasses, mask, beard.

- SMD enhanced motion detection, triggered by people and or vehicles, for up to 8 channels by recorder // or for up to 16 channels by camera

Intelligent (AI) search
- Face identification (rule by recorder or camera must support face identification)

Face identification with up to 8 images at the same time possible, search for similarities in percentage

- Face capture (rule by recorder or camera must support face capture)

Search by filter with attributes: age, gender, facial expression, glasses, mask, beard

- Perimeter Protection (rule by recorder or camera must support perimeter protection)

Search via filters human, vehicle

- SMD Enhanced Motion Detection (rule by recorder or camera must support SMD)

Search by filter Man, Vehicle

- IVS rules (camera must support at least one of the IVS rules)

    Line crossing search (human, vehicle, non-vehicle filters)
    Search of area monitoring (filter human, vehicle, non-vehicle)
    Search for unmanned object
    Search for missing object
    Search for loitering
    Search for fast movement
    Search for crowd
    Search for virtual fence crossed
    Search for parking detection

- Stereo analysis (camera must support stereo analysis function)

    Search for fall detection
    Search for approach
    Search for violence detection

- Person detection (camera must support person detection)

Search by filter with attributes: top, color top, type of pants, color of pants, hat (helmet), bag, gender, age, umbrella, vest, alarm type

- License plate recognition (camera must support ANPR function)

Create white/black list for license plate / support alarm output / support recording

- Car detection (camera must support car detection function (video metadata))

Search by filter with attributes: Type (list), Vehicle color, Vehicle type, Car make, License plate color, Car extras, On phone, Strapped on, Country

- Non-car detection (camera must support car detection function (video metadata))

Search by filter with attributes: vehicle color, vehicle type, hat (helmet)

- People counting (camera must support people counting function)

Evaluation of the number of entries, number of exits in the defined area and time period
Evaluation and export by image or CSV file

- HeatMap (camera must support area frequency graph (heat map))

Display of high and low frequented areas in the defined period, as heat map / export as BMP image file
