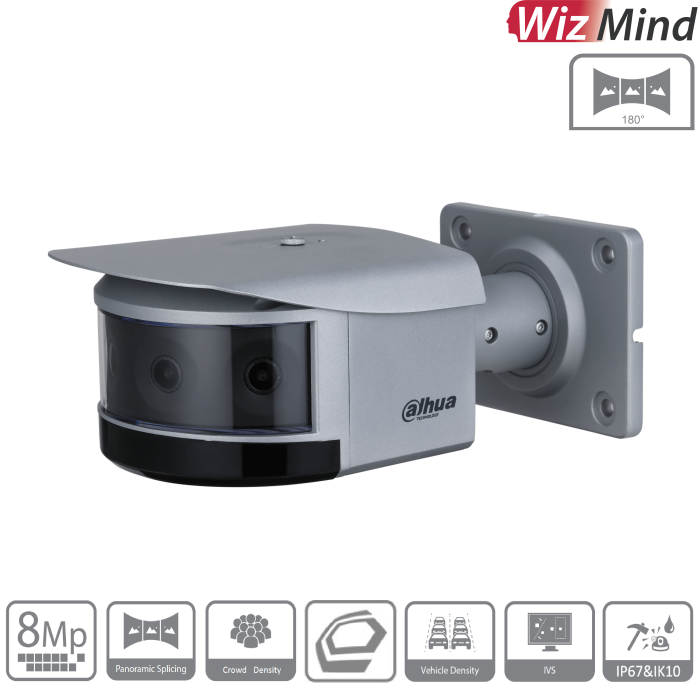

Dahua - IPC-PFW8840P-A180 - IP - Bullet - Multilens Kamera
- 4x 2 MP/WizMind/Panorama
- 4x 2,8mm fix lens
- Max. IR ~30m
- DWDR/3DNR/BLC/HLC
- 2/2 Alarm In/Out, 1/1 Audio In/Out
- IP67, IK10
- DC12V, AV24V, PoE+
Über 30 Jahre ErfahrungÜber
Professionelle Beratung durch unsere Experten
Professioneller Aufbau
3 jahre Garantie und Lebenslang Service
Service Qualitat Nr. 1
- 4x 2 megapixel (8MP) / WizMind / Panorama 180°.
- 4x 2.8mm fixed lens
- 4x 1/2.8" inch CMOS
- Max. IR range ~30m
- Supports H.265 / H.264+ / H.264 / MJPEG (secondary stream) codec
- 25 fps @ 8MP (4096 x 1800), 25 fps @ 6MP (3840 x 1680), 25 fps @ 4MP (2880 x 1264)
- 2/2 alarm inputs (5mA 3-5VDC) / outputs (1000mA 30V DC, 500mA 50V DC)
- 1/1 audio input / output
- DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC, HLC, SSA
- Micro SD card slot up to 256GB
- Analogue BNC video output for test monitor
- Privacy zone masking for 4 zones
- IP67, IK10
- DC 12V, AC 24V, PoE+
- Motion detection, audio detection (noise)
- Intelligent Video System (IVS), one choice each possible between:
Perimeter Protection with object filter Human, vehicle for tripwire and area surveillance, with object tracking in camera web interface
Crowd distribution Crowd counting in the area, crowd density determination in m²
Vehicle density detection of traffic congestion, parking detection (0-300 sec.), vehicle upper limit
- Colour
- Silver Grey
- Camera type
- Bullet
- Max Resolution
- 8MP
- Image Sensor
- 4x 1/2,8" 2MP CMOS
- Max Aperture
- F1.6
- Minimum Illumination (Color)
- 0.002 Lux
- Minimum Illumination (B/W)
- 0.0002 Lux
- IR LED Lighting Distance
- 030 m
- Lens Type
- Fixed lens
- Focal Length
- 4x 2,8 mm
- Angle of View (H)
- 180°
- Angle of View (V)
- 90°
- FPS @ 4MP
- 25 FPS
- FPS @ 6MP
- 25 FPS
- FPS @ 8MP
- 25 FPS
- WDR
- DWDR
- Video Output
- 1 channel (Cable included)
- Audio In
- 1 channel
- Audio Out
- 1 channel
- Alarm Input
- 2 channels
- Alarm Output
- 2 channels
- Power Supply
- DC 12V, AC 24V, PoE+ (802.3at)
- Power Consumption
- Max. 16,2W
- Operating Conditions
- -40°C ~ +60°C / Less than 95% RH
- Micro SD Slot
- 256 GB
- Ingress Protection
- IP67
- Vandal Resistance
- IK10
- IVS
- Yes
- People counting
- Yes
- Special Feature
- Panorma, IVS: Tripwire, Intrusion/Human&Vehicle classification
