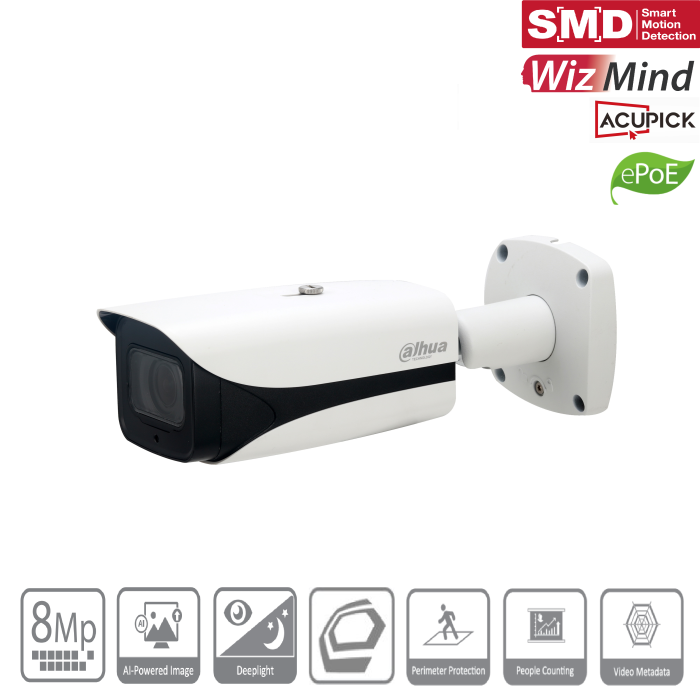

Dahua - IPC-HFW5842EP-Z4E-S3 - IP - Bullet Kamera
Verfügbarkeit : Auf Lager
SKU :
CSP-13283
- 8MP/Deeplight/WizMind S
- 8 ~ 32 mm motorized lens
- Supports H.265/H.264 codec
- 2/1 Alarm in/out and 1/1 Audio in/out
- Max. IR Range ~120m
- Micro SD Slot, IP67, IK10, ePoE
Über 30 Jahre ErfahrungÜber
Professionelle Beratung durch unsere Experten
Professioneller Aufbau
3 jahre Garantie und Lebenslang Service
Service Qualitat Nr. 1
- 8 Megapixel / Deeplight / WizMind S
- 1/1.8" CMOS
- 8 ~ 32 mm motorised lens
- 4x IR LED, Max. IR range ~120m
- Light sensitivity colour 0.0008 lux @F1.6 / black white 0.0004 lux @ F1.6
- Supports H.265 / H.264+ / H.264 / MJPEG (secondary stream) codec
- 25 fps @ 8MP (3840x2160), 25 fps @ 4MP (2688×1520), 25 fps @ 2MP (1920x1080)
- 2/1 alarm in (5mA 5VDC)/out(300mA 12VDC) and 1/1 audio in/out
- 120dB True WDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC, HLC, SSA
- Micro SD card slot up to 512 GB
- Audio detection (noise), glass breakage, scream, Built in mic
- Intelligent Video System (IVS), one choice each possible between:
Intelligent Motion Detection (SMD 3.0) with filter human, vehicle in frame
IVS Analysis Rule type: Parking Detect (6-300 sec.), Accumulation Detect, Wandering Detect
Perimeter Protection with Object Filter Human, Vehicle for Tripwire and Area Monitoring
Object Monitoring with Object Placement, Object Removal with Filter for Luggage, Bag, Crate / Non-Motorised Vehicle
Area frequency graphic (heat map) /
Face detection with metadata/attributes such as age, gender, facial expression, glasses, mouth mask, beard /
Counting people by trip wire,
Queue area alerting by waiting time and or waiting person count /
- 1/1.8" CMOS
- 8 ~ 32 mm motorised lens
- 4x IR LED, Max. IR range ~120m
- Light sensitivity colour 0.0008 lux @F1.6 / black white 0.0004 lux @ F1.6
- Supports H.265 / H.264+ / H.264 / MJPEG (secondary stream) codec
- 25 fps @ 8MP (3840x2160), 25 fps @ 4MP (2688×1520), 25 fps @ 2MP (1920x1080)
- 2/1 alarm in (5mA 5VDC)/out(300mA 12VDC) and 1/1 audio in/out
- 120dB True WDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC, HLC, SSA
- Micro SD card slot up to 512 GB
- Audio detection (noise), glass breakage, scream, Built in mic
- Intelligent Video System (IVS), one choice each possible between:
Intelligent Motion Detection (SMD 3.0) with filter human, vehicle in frame
IVS Analysis Rule type: Parking Detect (6-300 sec.), Accumulation Detect, Wandering Detect
Perimeter Protection with Object Filter Human, Vehicle for Tripwire and Area Monitoring
Object Monitoring with Object Placement, Object Removal with Filter for Luggage, Bag, Crate / Non-Motorised Vehicle
Area frequency graphic (heat map) /
Face detection with metadata/attributes such as age, gender, facial expression, glasses, mouth mask, beard /
Counting people by trip wire,
Queue area alerting by waiting time and or waiting person count /
Video metadata:
- People capture with metadata/attributes: Image of face/gender, clothing, colour, bag, hat, umbrella/.
- Vehicle capture with metadata/attributes: Image of vehicle, image of number plate, number plate capture, vehicle type, vehicle colour, seat belt fastened, smoking, talking on phone /
- Two-wheeler Capture with metadata/attributes: Vehicle type, Vehicle colour, Number of passengers,...
- People capture with metadata/attributes: Image of face/gender, clothing, colour, bag, hat, umbrella/.
- Vehicle capture with metadata/attributes: Image of vehicle, image of number plate, number plate capture, vehicle type, vehicle colour, seat belt fastened, smoking, talking on phone /
- Two-wheeler Capture with metadata/attributes: Vehicle type, Vehicle colour, Number of passengers,...
- ANPR Function only with NVR
- Image rotation mode, 0° / 90° / 180° / 270° // (90° / 270° with 2688x1520 resolution and lower) // Image mirroring
- Privacy masking 8x areas
- IP67, IK10
- DC 12V, PoE, ePoE
- Image rotation mode, 0° / 90° / 180° / 270° // (90° / 270° with 2688x1520 resolution and lower) // Image mirroring
- Privacy masking 8x areas
- IP67, IK10
- DC 12V, PoE, ePoE
| Linse | Identifizieren | Erkennen | Beobachten | Entdecken |
| Weitwinkel | 21,4m | 42,7m | 85,4m |
213,6m |
| kompletter Zoom | 57,3m | 114,6m | 229,1m |
572,8m |
Schreiben Sie eine Bewertung
- Colour
- White
- Camera type
- Bullet
- Max Resolution
- 8MP
- Image Sensor
- 1/1,8" CMOS
- Max Aperture
- F1.6
- Minimum Illumination (Color)
- 0.0008 Lux
- Minimum Illumination (B/W)
- 0.0004 Lux
- IR LED Lighting Distance
- 120 m
- Lens Type
- motorized
- Focal Length
- 8 - 32 mm
- Angle of View (H)
- 42° ~ 15°
- Angle of View (V)
- 23° ~ 9°
- FPS @ D1
- 25 FPS
- FPS @ 2MP
- 25 FPS
- FPS @ 4MP
- 25 FPS
- FPS @ 8MP
- 25 FPS
- WDR
- 120dB
- Privacy Zone
- 8
- Audio In
- 1 channel
- Audio Out
- 1 channel
- Loudspeaker
- No
- Siren
- No
- Microphone
- Yes
- Alarm Input
- 2 channels
- Alarm Output
- 1 channel
- Power Supply
- DC 12V, PoE, ePoE
- Power Consumption
- 10,2W (12V DC); 12,8W (PoE)
- Operating Conditions
- -30°C ~ +60°C / Less than 95% RH
- Micro SD Slot
- 512 GB
- Ingress Protection
- IP67
- Vandal Resistance
- IK10
- Casing
- Metal
- Active deterrence
- No
- ANPR
- Yes
- ePoE
- Yes
- Face Detection
- Yes
- IVS
- Yes
- Scene Self-adaptation
- Yes
- Perimeter Protection
- Yes
- People counting
- Yes
- Privacy Protection (Mosaik Face/Body)
- No
- Quick Pick
- No
- Acupick
- Yes
- SMD
- Yes
- Special Feature
- Deeplight, Perimeter Protection, SMD 3.0, Parking Detect, Object Missing, ... / Face detection (attributes) / Heat map / Video metadata
