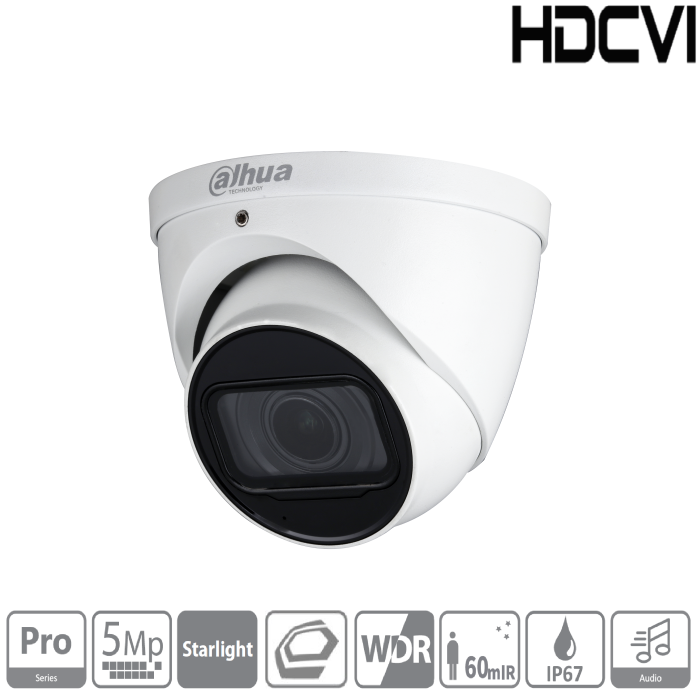

Dahua - HAC-HDW2501TP-Z-A-S2 - HDCVI - Eyeball Kamera
- 5 MP/Starlight
- 2.7 ~ 13.5 mm motorized lens
- 120dB true WDR,3DNR,BLC,HLC
- HDCVI/AHD/TVI/CVBS Output
- Bulit in Mic
- Max. IR Range ~60m
- IP67, DC 12V
Über 30 Jahre ErfahrungÜber
Professionelle Beratung durch unsere Experten
Professioneller Aufbau
3 jahre Garantie und Lebenslang Service
Service Qualitat Nr. 1
- 5 Megapixel / Starlight
- 1/2.7" inch CMOS
- 2,7 ~ 13,5 mm motor. Lens / Auto Focus
- 2x IR LED, Max. IR range ~60m
- Smart IR, day / night switching
- Light sensitivity 0,001 lux @F1.6 / IR at 0 lux
- 25fps @ 5MP (2880 x 1620), 25fps @ 4MP (2560 x 1440), 25fps @ 1080p (1920 x 1080)
- 5MP (16:9), 4MP, 1080p HDCVI resolution switching via OSD menu
- Multi-format HDCVI / TVI / AHD / CVBS (switching only via DIP switch on cable head)
- Built-in microphone (can be deactivated in OSD menu)
- 8x private masking zones via OSD menu
- 120dB true WDR, 3DNR / BLC / HLC
- IP67
- DC 12V
- Aluminium material
|
DORI (Detect, Observe, Recognize, Identify) |
||||
|
Lens |
Identify |
Recognize |
Observe |
Detect |
|
Wide Angle |
6,4m |
12,8m |
25,6m |
64m |
|
Tele Zoom |
21m |
42m |
84m |
210m |
- Colour
- White
- Camera technology
- HDCVI
- Camera type
- Eyeball
- Max Resolution
- 5MP
- Image Sensor
- 1/2,7" CMOS
- Max Aperture
- F1.6
- Minimum Illumination
- 0.005 Lux
- Minimum Illumination (IR on)
- 0 Lux
- IR LED Lighting Distance
- 060 m
- Lens Type
- Motorized
- Focal Length
- 2.7 - 12 mm
- Angle of View (H)
- 113° ~ 31,4°
- Angle of View (V)
- 58° - 17,6°
- FPS @ 1080p
- 25 FPS
- FPS @ 4MP
- 25 FPS
- FPS @ 5MP
- 25 FPS
- WDR
- 120dB
- Video Output
- 1x BNC output: HDCVI
- Microphone
- Yes
- Power Supply
- DC 12V
- Power Consumption
- Max. 7.9W
- Operating Conditions
- -30°C ~ +60°C / Less than 95% RH
- Ingress Protection
- IP67
- Special Feature
- Starlight / Smart IR / IR Distance 60m / IP67 / Multiformat / Multi-language OSD
