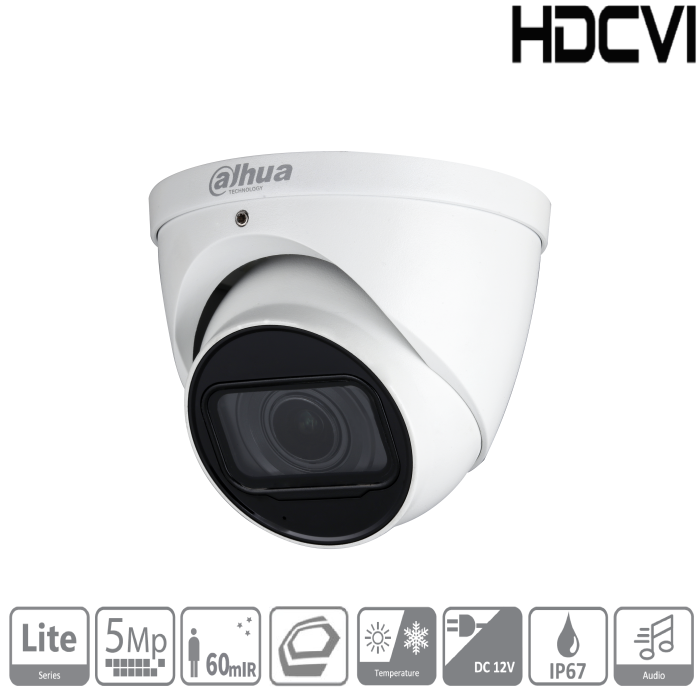

Dahua - HAC-HDW1500TP-Z-A-S2 - HDCVI - Eyeball Kamera
- 5 MP
- 2.7 ~ 12 mm motorized lens
- DWDR,2DNR
- HD/SD/Multi-format Output (switchable)
- Bulit in Mic
- Max. IR Range ~60m
- IP67, DC 12V
Über 30 Jahre ErfahrungÜber
Professionelle Beratung durch unsere Experten
Professioneller Aufbau
3 jahre Garantie und Lebenslang Service
Service Qualitat Nr. 1
- 5 megapixel
- 1/2.7" inch CMOS
- 2.7 ~ 12mm motorized lens / no auto focus
- 25fps@5MP (2880x1620), 25fps@4MP, 25fps@1080p
- 2x IR LED, Max. IR range ~60m
- Light sensitivity 0.005 lux @F1.6 / IR at 0 lux
- Smart IR, day / night switching
- DWDR, 3DNR / BLC / HLC
- Built-in microphone
- IP67
- DC 12V
- Material Aluminum
- HD/SD / Multiformat output (1x BNC connector), HDCVI / TVI / AHD / CVBS (format switching with PFM820 controller only for 1080p/ HD/SD via OSD menu)
- Zoom and Focus settings motorized, no Auto Focus!
|
DORI (Detect, Observe, Recognize, Identify) |
||||
|
Lens |
Identify |
Recognize |
Observe |
Detect |
|
Wide Angle |
6,9m |
13,8m |
27,6m |
69m |
|
Tele Zoom |
19,16m |
38,32m |
76,64m |
191,6m |
- Colour
- White
- Camera technology
- HDCVI
- Camera type
- Eyeball
- Max Resolution
- 5MP
- Image Sensor
- 1/2,7" CMOS
- Max Aperture
- F1.6
- Minimum Illumination
- 0.005 Lux
- Minimum Illumination (IR on)
- 0 Lux
- IR LED Lighting Distance
- 060 m
- Lens Type
- Motorized
- Focal Length
- 2.7 - 12 mm
- Angle of View (H)
- 130° ~ 39°
- FPS @ 1080p
- 25 FPS
- FPS @ 4MP
- 25 FPS
- FPS @ 5MP
- 25 FPS
- WDR
- DWDR
- Video Output
- 1x BNC output: HDCVI
- Microphone
- Yes
- Power Supply
- DC 12V
- Power Consumption
- Max. 6.6W
- Operating Conditions
- -30°C ~ +60°C / Less than 95% RH
- Ingress Protection
- IP67
- Special Feature
- Starlight / Smart IR / IR Distance 60m / IP67 / Multiformat / Multi-language OSD / Zoom and Focus motorized, no Auto-Focus
