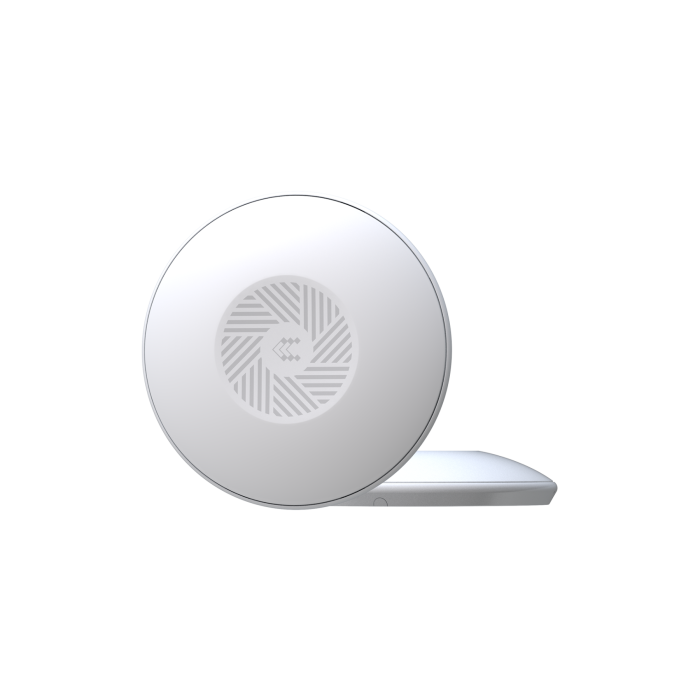

TELTONIKA TAP200 Wi-FI 5 ACCESS POINT
Verfügbarkeit:
Auf Lager
SKU
TAP200
Navigation umschalten
WIRELESS
-
Wireless mode
802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
-
Wi-Fi security
WPA2-EAP/WPA3-EAP Mixed Mode, WPA3-EAP, WPA2-PSK/WPA3-SAE Mixed Mode, WPA3-SAE, OWE, WPA-PSK/WPA2-PSK Mixed Mode, WPA2-PSK, WPA2-EAP; AES-CCMP, TKIP, Auto Cipher modes, isolate clients
-
SSID/ESSID
ESSID stealth mode (Hide SSID)
-
Wi-Fi users
Up to 100 simultaneous connections
-
Wireless Connectivity Features
Fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
-
Wireless MAC filter
Whitelist, blacklist
-
Wireless QR code generator
Once scanned, a user will automatically enter your network without needing to input login information.
ETHERNET
-
Ethernet
1 x RJ45 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
NETWORK
-
Network protocols
TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL/TLS, ARP, SSH, DHCP client, SNMP
SECURITY
-
Authentication
SSH key based, HTTPS, CLI, IP & Login attempts block
-
VLAN
Tag-based VLAN separation
API
-
Teltonika Networks Web API (beta) support
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
MONITORING & MANAGEMENT
-
WEB UI
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
-
FOTA
Firmware update from server, automatic notification
-
SSH
SSH (v1, v2)
-
Email
Receive email message status alerts of various services
-
JSON-RPC
Management API over HTTP/HTTPS
-
RMS
Teltonika Remote Management System (RMS)
SYSTEM CHARACTERISTICS
-
CPU
MediaTek, Dual-Core, 880 MHz, MIPS 1004Kc
-
RAM
256 MB, DDR3
-
FLASH storage
16MB, SPI NOR Flash
FIRMWARE / CONFIGURATION
-
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
-
FOTA
Update FW
-
RMS
Update FW/configuration for multiple devices at once
-
Keep settings
Update FW without losing current configuration
FIRMWARE CUSTOMISATION
-
Operating system
RutOS (OpenWrt based Linux OS)
-
Supported languages
Busybox shell, Lua, C, C++
-
Development tools
SDK package with build environment provided
-
GPL customization
You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs.
POWER
-
Connector
RJ45 Socket
-
Input voltage range
44.0 – 57.0 V
-
PoE standards
802.3af PoE Class 1
-
Power consumption
Idle: < 4 W / Max: < 5.5 W
PHYSICAL INTERFACES
-
Ethernet
1 x RJ45 port, 10/100/1000 Mbps
-
Status LEDs
1 x Power LED (can be turned off from web-UI)
-
Antennas
2 x Internal for 2.4 GHz Wi-Fi, 2 x Internal for 5 GHz Wi-Fi
-
Antennas specifications
2 x 2400 - 2500 MHz, 50 Ω, VSWR <2.7, gain < 4.9 dBi, omnidirectional
2 x 5150 - 5850 MHz, 50 Ω, VSWR <2, gain < 5.02 dBi, omnidirectional
-
Reset
Reboot/User default reset/Factory reset button
PHYSICAL SPECIFICATION
-
Casing material
UV stabilized plastic
-
Dimensions
Ø 158 mm x 30 mm
-
Weight
190 g
-
Mounting options
AP mounting bracket (for ceiling mount)
OPERATING ENVIRONMENT
-
Operating temperature
-40 °C to 75 °C
-
Operating humidity
10% to 90% non-condensing
-
Ingress Protection Rating
IP30
REGULATORY & TYPE APPROVALS
-
Regulatory
CE, UKCA, FCC, IC, RCM, CB, EAC, UCRF, WEEE
EMC EMISSIONS & IMMUNITY
-
Standards
EN 55032:2015+A11:2020
EN 55035:2017+A11:2020
EN 61000-3-3:2013+A1:2019+A2:2021
EN IEC 61000-3-2:2019+A1:2021
EN 301 489-1 V2.2.3
EN 301 489-17 V3.2.4
-
ESD
EN 61000-4-2:2009
-
Radiated Immunity
EN IEC 61000-4-3:2020
-
EFT
EN 61000-4-4:2012
-
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017
-
CS
EN 61000-4-6:2014
-
DIP
EN IEC 61000-4-11:2020
RF
-
Standards
EN 300 328 V2.2.2; EN 300 893 V2.1.1; EN 300 440 V2.2.1
SAFETY
-
Standards
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
EN IEC 62311:2020
