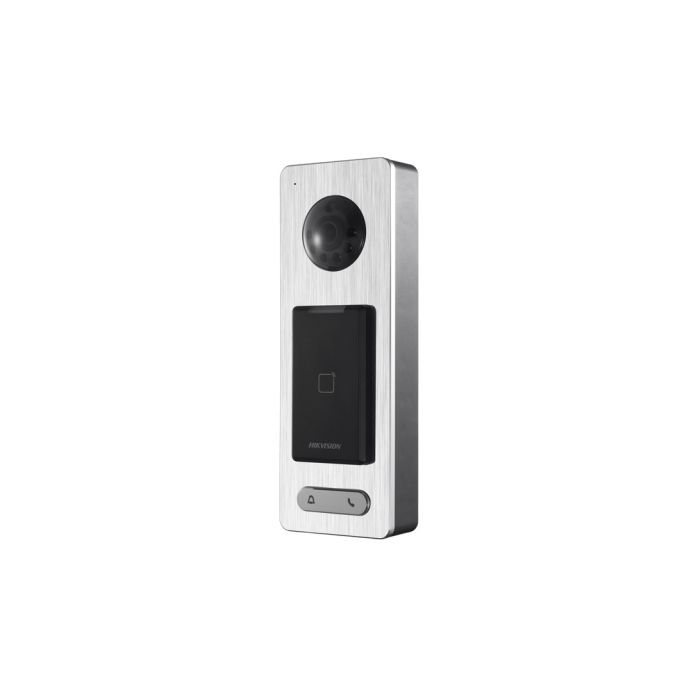

Pro Series Video and Card Terminal
Pro Series Video and Card Terminal
- Video access control card terminal
- 2 Mega pixels camera
- 50,000 card and 200,000 event storage
- Built-in card reader for Mifare1 card
- Wiegand interface and RS-485 interface for accessing controller
- EHome for public network communication
- Face detection and picture capture function
- Video intercom function
- IP65
Kommunikationsmodus : Terminal Mode: TCP/IP and RS-485,Card Reader Mode: Wiegand (26/34) and RS-485,
Eingabeschnittstelle : Doorbell Button × 1, Door Magnetic Sensor × 1, Alarm Input × 2, Tamper Alarm × 1, Exit Button × 1
Ausgabeschnittstelle : Lock Relay × 1, Alarm Output (Doorbell) × 1
Built-in Micro SD Card : Max. 128G
Kamera : 2MP/1080P, IR Light
Fähigkeit: 50,000 Cards and 200,000 Swiping Card Records
Card Reading Mode: Mifare Card
Induction Distance: ≥ 2cm
Prozessor: 32 Bit High-performance Processor
Betriebstemperatur : -40°C to 70°C (-40°F to 158°F)
Luftfeuchtigkeit : 10% to 90% (No Condensing)
Working Current : Max. 600 mA
Spannungsversorgung : 12 VDC/1 A
Audio : Audio Input: Build-in Micro Phone (Sensitivity: -25±3DB),Audio Output: Build-in Loudspeaker (1W),
Installation : Wall Mounting
Schutzklasse : IP65
Abmessung : 218mm × 78mm × 41mm (8.58" × 3.07" × 1.61")
