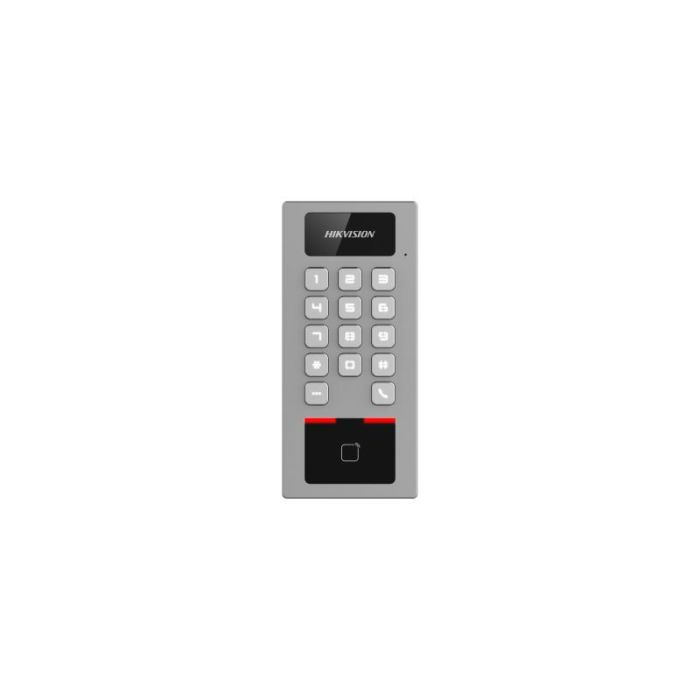

Kartenterminals Access Control Terminal
Kartenterminals Access Control Terminal
- Manage access control and intercom functions in one device
- IP65 & IK09 protections, as well as increased stability with zinc alloy materials
- Supports multiple authentication methods (card, PIN, etc.)
- Remote control via the Hik-Connect mobile app
- Connects to external access controller via Wiegand protocol
- Intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
- RS-485 communication for connecting external card reader and calling elevator
- Supports AP mode
- Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
- Supports up to 256 GB SD card memory
- Supports PIN settings under platform mode and local mode
- Setting the priority of wired network and wireless network is available
Kommunikationsmodus : Terminal Mode: TCP/IP and RS-485,Card Reader Mode: Wiegand (26/34) and RS-485,
Eingabeschnittstelle : Doorbell Button × 1, Door Magnetic Sensor × 1, Alarm Input × 2, Tamper Alarm × 1, Exit Button × 1
Ausgabeschnittstelle : Lock Relay × 1, Alarm Output (Doorbell) × 1
Built-in Micro SD Card : Max. 128G
Kamera : 2MP/1080P, IR Light
Fähigkeit: 50,000 Cards and 200,000 Swiping Card Records
Card Reading Mode: Mifare Card
Induction Distance: ≥ 2cm
Prozessor: 32 Bit High-performance Processor
Betriebstemperatur : -40°C to 70°C (-40°F to 158°F)
Luftfeuchtigkeit : 10% to 90% (No Condensing)
Working Current : Max. 600 mA
Spannungsversorgung : 12 VDC/1 A
Audio : Audio Input: Build-in Micro Phone (Sensitivity: -25±3DB),Audio Output: Build-in Loudspeaker (1W),
Installation : Wall Mounting
Schutzklasse : IP65
Abmessung : 218mm × 78mm × 41mm (8.58" × 3.07" × 1.61")
