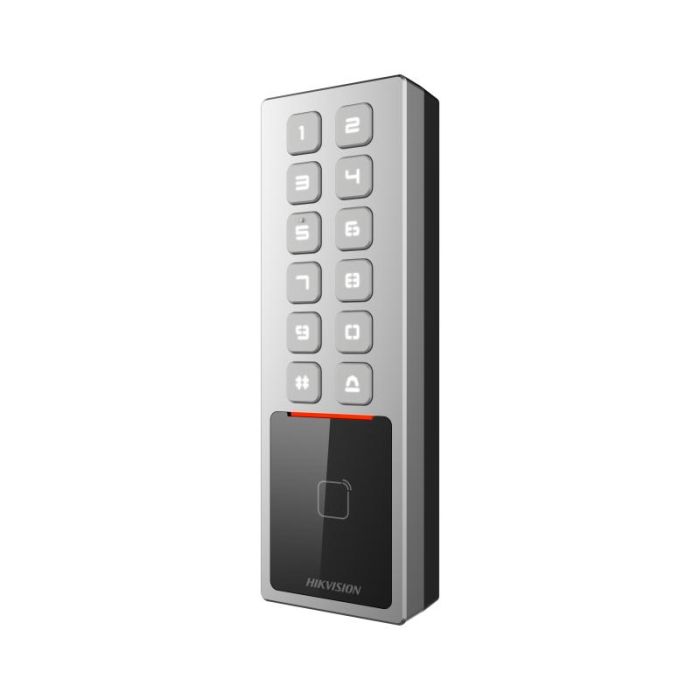

Kartenterminal Access Control Terminal
Kartenterminal Access Control Terminal
- High protective level: IP65 and IK08
- Slim and flexible design with metal
- 10,000 cards and 100,000 events storage
- Built-in card reader for M1 card
- Supports operation by mobile App (Hik-Connect)
- Supports AP configuration, configuration via PC web and mobile web are available
- Supports multiple authentication types: card, PIN, and bluetooth
Kommunikationsmodus : Terminal Mode: TCP/IP and RS-485,Card Reader Mode: Wiegand (26/34) and RS-485,
Eingabeschnittstelle : Doorbell Button × 1, Door Magnetic Sensor × 1, Alarm Input × 2, Tamper Alarm × 1, Exit Button × 1
Ausgabeschnittstelle : Lock Relay × 1, Alarm Output (Doorbell) × 1
Built-in Micro SD Card : Max. 128G
Kamera : 2MP/1080P, IR Light
Fähigkeit: 50,000 Cards and 200,000 Swiping Card Records
Card Reading Mode: Mifare Card
Induction Distance: ≥ 2cm
Prozessor: 32 Bit High-performance Processor
Betriebstemperatur : -40°C to 70°C (-40°F to 158°F)
Luftfeuchtigkeit : 10% to 90% (No Condensing)
Working Current : Max. 600 mA
Spannungsversorgung : 12 VDC/1 A
Audio : Audio Input: Build-in Micro Phone (Sensitivity: -25±3DB),Audio Output: Build-in Loudspeaker (1W),
Installation : Wall Mounting
Schutzklasse : IP65
Abmessung : 218mm × 78mm × 41mm (8.58" × 3.07" × 1.61")
