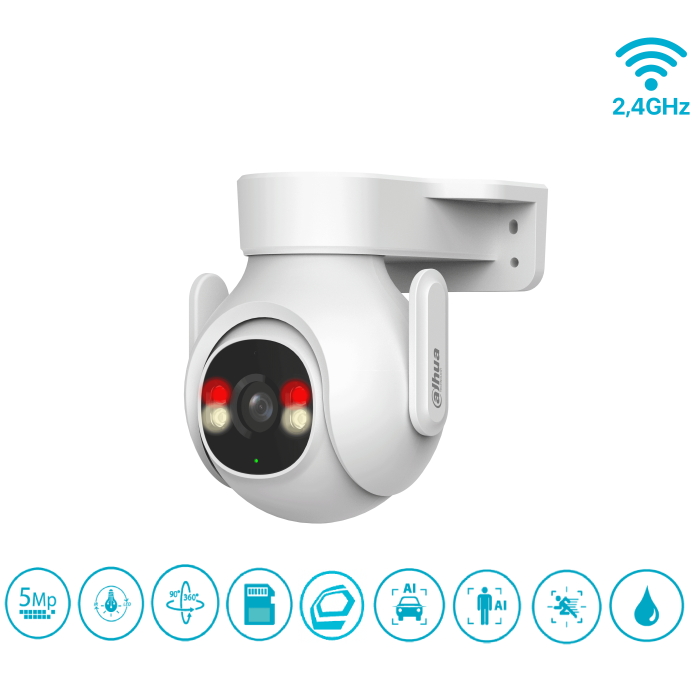

Dahua - P5B-PV-0360B-EUR - IP - Wifi - PT

66,20 €
Verfügbarkeit:
Auf Lager
SKU
CX-13537
- 5MP / 1/3" CMOS
- 3,6mm, fix, H 78°
- 2 LED, IR Light 30m, white Light 30m, DWDR
- 1 Mic, 1 Speaker
- 12 VDC
- Wi-Fi 2,4
- Human, Vehicle Detection, Active Deterrence, Auto Tracking

IBN Number 6923172563491

- Wireless Picoo / SMD / Auto Tracking / DMSS APP

- 5 megapixels / 3,6 mm fixed lens / H78° V40°
- 1/3" CMOS
- 25 fps @ 5MP (2560 x 1920), 25 fps @ D1 (640x360)
- 2 Multi-core LED, IR Light or warm white Light
- IR Light, max. IR range ~30m
- warm white light LED, max LED range ~30m
- Light sensitivity colour 0.007 lux @F1.6
- Light sensitivity black and white 0.0007 lux @ F1.6

- Pan: 0° ~ 355° limited
- Tilt: 0° ~ -90°
- Preset
- Tour

- Supports H.265
- DWDR, day/night (colour/black and white)
- Micro SD slot up to 256 GB
- Built-in microphone, audio detection (noises) / built-in speaker, siren
- Two-way communication with DMSS APP
- No privacy masking
- IP66
- Wi-Fi pairing via Bluetooth
- Wi-Fi frequency range 2.4 GHz (IEEE 802.11b/g/n/ax)
- Power supply only with DC 12V, no PoE!

- SMD: Improved motion detection (triggered only by people or vehicles in the image)
- Active deterrence with white light LED, sound alarm
- Auto Tracking

- Power supply included

Intelligent dual illumination
Dahua Smart Dual Illuminators technology uses an intelligent algorithm to detect targets. Normally, the IR illuminator is switched on at night; when the target appears in the surveillance area, the warm light is switched on and the camera records the full-colour video and information about important events. This means that the camera links snapshots and video with full-colour images. When the target is outside the surveillance area, the warm light is turned off and the IR illuminator is turned on, effectively reducing light pollution.

Colour
White
Camera technology
IP
Camera type
PT
Max Resolution
5MP
Image Sensor
1/3" CMOS
Minimum Illumination (Color)
0,007 lux
Minimum Illumination (B/W)
0,0007 lux
IR Light LED
030 m
white light LED
030 m
Lens Type
fixed lens
Focal Length
3,6 mm
Max Aperture
F1.6
Angle of View (H)
78°
Angle of View (V)
40°
FPS @ D1
25 FPS
FPS @ 5MP
25 FPS
WDR
DWDR
Loudspeaker
Yes
Siren
Yes
Microphone
Yes
Micro SD Slot
256 GB
Network Port
1 RJ-45 (10/100 Mbps)
Power Supply
DC 12V/1A
Power Consumption
Max. 4,56W
Operating Conditions
-20°C ~ +50°C / Less than 95% RH
Ingress Protection
IP66
Wi-Fi
Yes
Wi-Fi Standard
2,4GHz
Wi-Fi Frequency Range
IEEE 802.11b/g/n/ax
Material
Housing plastic
Acupick
No
Active deterrence
Yes
ANPR (number plate identification)
No
Autotracking
No
Dual Light
Yes
Dynamic pixelation
No
Face Detection
No
Face Recognition
No
IVS
No
Perimeter Protection
No
People counting
No
PPE Detection
No
Quick Pick
No
SMD
Yes
Videometadata
No
Special Feature
Active Deterrence / Auto Tracking / SMD

Ihre Download-Datei finden Sie hier. /media/pdfs/CX-Product_number__13537/p5b-pv_s0_datasheet_20240425.pdf Download: Datenblatt
