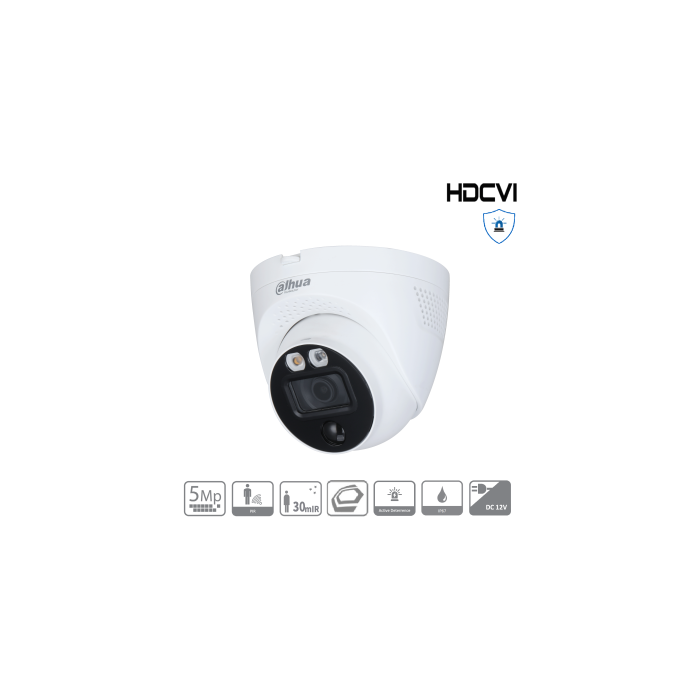

Dahua - HAC-ME1500EQP-LS-0280B-S2 - HDCVI - Eyeball
73,00 €
Verfügbarkeit:
Auf Lager
SKU
CX- 13014
- 5MP/active Deterrence
- 2,8 mm fix lens
-Max. IR length ~30m
- PIR detector, Siren, White Light Active Deterrence
- IP67, DC 12V
- 2,8 mm fix lens
-Max. IR length ~30m
- PIR detector, Siren, White Light Active Deterrence
- IP67, DC 12V
IBN Number 6923172524454
- 5 megapixel / Active quenching (only in combination with XVR-I)
- 2,8 mm fixed lens
- 1x IR LED, max. IR range ~30m
- light sensitivity 0,005 lux @F1.6
- 25 fps @ 5MP (2880 x 1620), 25 fps @ 4MP (2560x1440), 25 fps @ 1080p (1920x1080)
- DWDR, 2DNR, BLC, HLC
- Active deterrent by 1x warm white light LED, siren alarm (3x predefined sounds)
- Motion Detector(PIR)10m Detection Range,110° Detection Angle
- 8x private masking zones via OSD menu
- IP67, DC12V
- HD/SD / Multiformat output (1x BNC connector), HDCVI / TVI / AHD / CVBS (format switching with PFM820 controller / HD/SD via OSD menu)
- 2,8 mm fixed lens
- 1x IR LED, max. IR range ~30m
- light sensitivity 0,005 lux @F1.6
- 25 fps @ 5MP (2880 x 1620), 25 fps @ 4MP (2560x1440), 25 fps @ 1080p (1920x1080)
- DWDR, 2DNR, BLC, HLC
- Active deterrent by 1x warm white light LED, siren alarm (3x predefined sounds)
- Motion Detector(PIR)10m Detection Range,110° Detection Angle
- 8x private masking zones via OSD menu
- IP67, DC12V
- HD/SD / Multiformat output (1x BNC connector), HDCVI / TVI / AHD / CVBS (format switching with PFM820 controller / HD/SD via OSD menu)
| Lens | Identify | Recognize | Observe | Detect |
| Wide Angle 2,8mm | 7,8m | 15,6m | 31,2m |
78m |
- Colour
- White
- Camera technology
- HDCVI
- Camera type
- Eyeball
- Max Resolution
- 5MP
- Image Sensor
- 1/2.7" CMOS
- Minimum Illumination
- 0,005 LUX
- IR Light LED
- 030 m
- white light LED
- 030 m
- Lens Type
- fixed lens
- Focal Length
- 2.8 mm
- Max Aperture
- F1.6
- Angle of View (H)
- 113°
- Angle of View (V)
- 60°
- FPS @ D1
- 25 FPS
- FPS @ 1080p
- 25 FPS
- FPS @ 4MP
- 25 FPS
- FPS @ 5MP
- 25 FPS
- WDR
- DWDR
- Video Output
- 1x BNC Ausgang: HDCVI
- Loudspeaker
- No
- Siren
- Yes
- Microphone
- No
- Power Supply
- DC 12V
- Power Consumption
- 4,9W
- Operating Conditions
- -40°C ~ +60°C / Less than 95% RH
- PIR Distance
- 010 m
- Ingress Protection
- IP67
- Material
- Housing plastic, Mounting-Plate plastic, Camera Housing metal
- Active deterrence
- Yes
- Special Feature
- warm white LED / Sirene and Light Active Deterrence / PIR detector
Ihre Download-Datei finden Sie hier.
Download: Datenblatt
