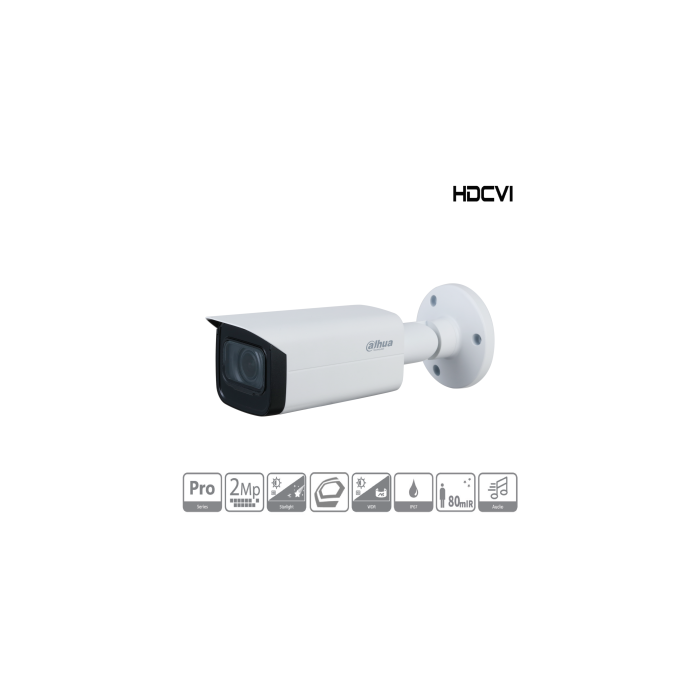

Dahua - HAC-HFW2241TUP-Z-A-27135-S2-DIP - HDCVI - Bullet

Seien Sie der Erste, der dieses Produkt bewertet

158,00 €

Verfügbarkeit:

Auf Lager

SKU

CX- 13167

- 2 MP/Starlight
- 2,7 ~ 13,5mm motorized lens
- Max. 25fps@2MP
- HDCVI/AHD/TVI/CVBS Output
- 130db true WDR, 3DNR, BLC, HLC, built-in-Mic
- Max. IR length ~80m, Smart IR
- IP67, DC12V

IBN Number 6923172523860

Details

- 2 Megapixel / Starlight
- 2,7 ~ 13.5 mm motorized lens

- 4x IR LED, Max. IR Range ~80m, Smart IR

- 25fps @ 2MP (1920 x 1080), 25fps @ 960H (960 x 576)
- 1080p HDCVI resolution switchable via OSD menu
- Multi-format HDCVI /TVI /AHD /CVBS (only switchable with DIP Switch)

- Built-in-Mic
- 8x Privacy Masking with OSD
- 130dB True WDR, 3DNR, BLC, HLC
- IP67

- DC12V

DORI (Detect, Observe, Recognize, Identify)
Lens	Identify	Recognize	Observe	Detect
Wide Angle	4,4m	8,8m	17,6m	44,1m
Tele Zoom	14,8m	28,9m	57,9m	144,8m

Specification

Colour: White
Camera technology: HDCVI
Camera type: Bullet
Max Resolution: 2MP
Image Sensor: 1/2,8" CMOS
Minimum Illumination: 0,001 Lux
Minimum Illumination (IR on): 0 Lux
IR Light LED: 080 m
Lens Type: Motorized
Focal Length: 2.7 - 13.5 mm
Max Aperture: F1.5
Angle of View (H): 108° ~ 30°
Angle of View (V): 56° ~ 17°
FPS @ 720p: 25 FPS
FPS @ 1080p: 25 FPS
WDR: 120dB
Video Output: 1x BNC output: HDCVI
Audio In: 1 channel
Microphone: Yes
Power Supply: DC 12V
Power Consumption: Max. 9,4W
Operating Conditions: -30°C ~ +60°C / Less than 95% RH
Ingress Protection: IP67
Casing: Aluminium
Special Feature: Starlight / Audio In , Built-in Mic

Herunterladen

Ihre Download-Datei finden Sie hier. Download: Datenblatt
