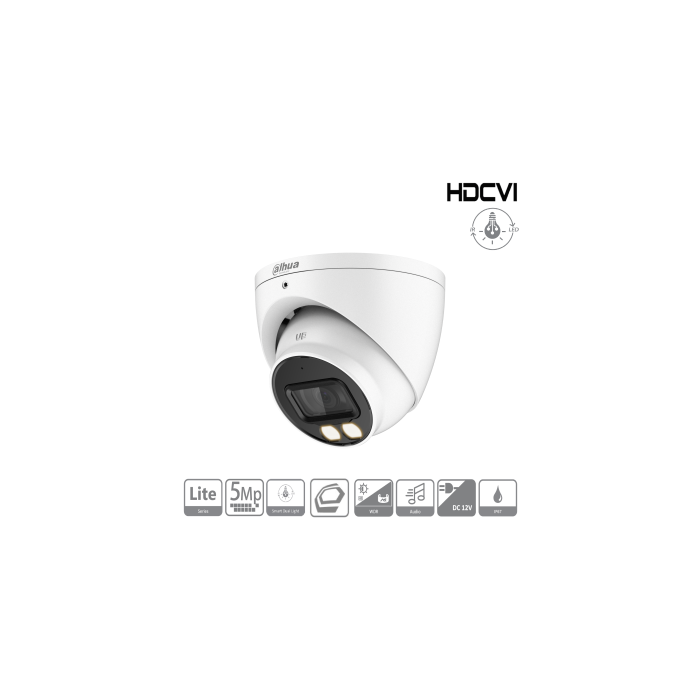

Dahua - HAC-HDW1509TP-IL-A-0280B-S2 - HDCVI - Eyeball
88,00 €
Verfügbarkeit:
Auf Lager
SKU
CX- 13298
- 5MP/Dual Illuminator
- 2,8 mm fix lens
- 2x warm white light LED/2x IR LED
- DC 12V, IP67
- 2,8 mm fix lens
- 2x warm white light LED/2x IR LED
- DC 12V, IP67
IBN Number 6923172540553
- 5 Megapixel / Dual Illumination (only in conjunction with XVR-I)
- 2,8 mm fixed lens
- 2x IR LED, max IR range ~40m
- 2x warm white light LED, max LED range ~40m
- Light sensitivity color 0.001 lux @F1.0 / black white 0.0001 lux @ F1.0
- 25 fps @ 5MP (2688x1520), 25 fps @ 4MP (2560x1440), 25 fps @ 1080p (1920x1080)
- 120dB true WDR, 3DNR, BLC, HLC
- Built-in microphone (can be disabled in OSD menu)
- 8x private masking zones via OSD menu
- IP67, DC12V
- HD/SD / Multiformat output (1x BNC connector), HDCVI / TVI / AHD / CVBS (format switching with PFM820 controller / HD/SD via OSD menu)
- 2,8 mm fixed lens
- 2x IR LED, max IR range ~40m
- 2x warm white light LED, max LED range ~40m
- Light sensitivity color 0.001 lux @F1.0 / black white 0.0001 lux @ F1.0
- 25 fps @ 5MP (2688x1520), 25 fps @ 4MP (2560x1440), 25 fps @ 1080p (1920x1080)
- 120dB true WDR, 3DNR, BLC, HLC
- Built-in microphone (can be disabled in OSD menu)
- 8x private masking zones via OSD menu
- IP67, DC12V
- HD/SD / Multiformat output (1x BNC connector), HDCVI / TVI / AHD / CVBS (format switching with PFM820 controller / HD/SD via OSD menu)
- Intelligent Dual Illumination (only with XVR-I)
With its intelligent dual illumination mechanism, the camera automatically turns on the white light when the Perimeter Protection/SMD Plus function of the XVR-I detects a target in the control area. When the target leaves the control area, the camera automatically switches from the white light to the IR illuminator.
| Lens | Identify | Recognize | Observe | Detect |
| Wide Angle 2,8mm | 7,8m | 15,6m | 31,2m |
78m |
- Colour
- White
- Camera technology
- HDCVI
- Camera type
- Bullet
- Max Resolution
- 5MP
- Image Sensor
- n. a.
- Minimum Illumination (Color)
- 0,001 Lux
- Minimum Illumination (B/W)
- 0.0001 Lux
- IR Light LED
- 040 m
- white light LED
- 040 m
- Lens Type
- fixed lens
- Focal Length
- 2.8 mm
- Max Aperture
- F1.0
- Angle of View (H)
- 111°
- Angle of View (V)
- 57°
- FPS @ D1
- 25 FPS
- FPS @ 1080p
- 25 FPS
- FPS @ 4MP
- 25 FPS
- FPS @ 5MP
- 25 FPS
- WDR
- 120dB
- Video Output
- 1x BNC output: HDCVI
- Loudspeaker
- No
- Siren
- No
- Microphone
- Yes
- Power Supply
- DC 12V
- Power Consumption
- Max. 5,7W
- Operating Conditions
- -40°C ~ +60°C / Less than 95% RH
- Ingress Protection
- IP67
- Material
- Metal
- Active deterrence
- No
- Dual Light
- Yes
- Special Feature
- Dual Illuminator / white LED, 40m distance / IR LED 40m / Built-in Mic / Multiformat / Multi-language OSD
Ihre Download-Datei finden Sie hier.
Download: Datenblatt
