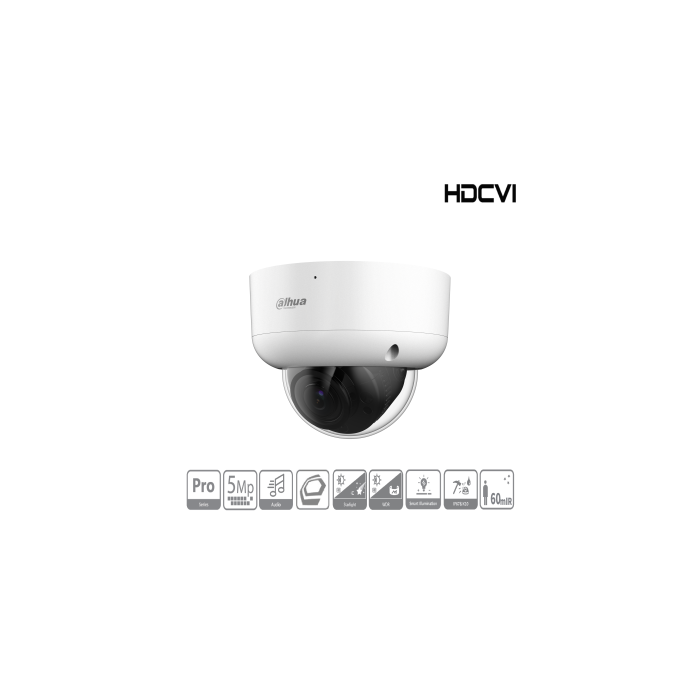

Dahua - HAC-HDBW2501RAP-Z-A-27135-S2-DIP - HDCVI - Dome
176,00 €
Verfügbarkeit:
Auf Lager
SKU
CX- 13133
- 5 MP/Starlight
- 2,7 ~ 13,5mm motorized lens
- Max. 25fps@5MP(16:9)
- HDCVI/AHD/TVI/CVBS Output
- 120dB true WDR, 3DNR, BLC, HLC
- Max. IR length ~60m, Smart IR
- IP67, IK10, DC12V
- 2,7 ~ 13,5mm motorized lens
- Max. 25fps@5MP(16:9)
- HDCVI/AHD/TVI/CVBS Output
- 120dB true WDR, 3DNR, BLC, HLC
- Max. IR length ~60m, Smart IR
- IP67, IK10, DC12V
IBN Number 6923172580597
- 5 Megapixel / Starlight
- 2,7 ~ 13,5mm motor. Lens, with Auto Focus
- 3x IR LED, Max. IR range ~60m, Smart IR
- Light sensitivity colour 0.01 lux @F1.6 / black white 0.001 lux @ F1.6
- 25fps @ 5MP (2880 x 1620), 25fps @ 4MP (2560 x 1440), 25fps @ 1080p (1920 x 1080)
- 120dB True WDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC, HLC HLC-Pro
- 1x BNC connector
- built-in microphone (can be deactivated in OSD menu)
- 5MP, 4MP, 1080p HDCVI resolution switching via OSD menu
- Multi-format HDCVI / TVI / AHD / CVBS (switching only via DIP switch on cable head)
- 8x masking via OSD menu
- IP67, IK10,
- DC12V
- 2,7 ~ 13,5mm motor. Lens, with Auto Focus
- 3x IR LED, Max. IR range ~60m, Smart IR
- Light sensitivity colour 0.01 lux @F1.6 / black white 0.001 lux @ F1.6
- 25fps @ 5MP (2880 x 1620), 25fps @ 4MP (2560 x 1440), 25fps @ 1080p (1920 x 1080)
- 120dB True WDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC, HLC HLC-Pro
- 1x BNC connector
- built-in microphone (can be deactivated in OSD menu)
- 5MP, 4MP, 1080p HDCVI resolution switching via OSD menu
- Multi-format HDCVI / TVI / AHD / CVBS (switching only via DIP switch on cable head)
- 8x masking via OSD menu
- IP67, IK10,
- DC12V
|
DORI (Detect, Observe, Recognize, Identify) |
||||
|
Lens |
Identify |
Recognize |
Observe |
Detect |
|
Wide Angle |
6,4m |
12,8m |
25,6m |
64m |
|
Tele Zoom |
21m |
42m |
84m |
210m |
- Colour
- White
- Camera technology
- HDCVI
- Camera type
- Dome
- Max Resolution
- 5MP
- Minimum Illumination (Color)
- 0,01 Lux
- Minimum Illumination (B/W)
- 0.001 Lux
- IR Light LED
- 030 m
- Lens Type
- motorized
- Focal Length
- 2.7 - 13.5 mm
- Max Aperture
- F1.6
- Angle of View (H)
- 113° ~ 31,4°
- Angle of View (V)
- 58° ~ 17,6°
- FPS @ 1080p
- 25 FPS
- FPS @ 4MP
- 25 FPS
- FPS @ 5MP
- 25 FPS
- WDR
- 120dB
- Video Output
- 1x BNC output: HDCVI
- Loudspeaker
- No
- Microphone
- Yes
- Power Supply
- DC 12V
- Power Consumption
- Max. 7.6W
- Operating Conditions
- -30°C ~ +60°C / Less than 95% RH
- Ingress Protection
- IP67
- Vandal Resistance
- IK10
- Special Feature
- Starlight / 5MP / Mic
Ihre Download-Datei finden Sie hier.
Download: Datenblatt
